Wednesday, 20 March 2013

Thrallhalla WIP

I began modelling the second character of the level just to give myself a break from UDK and asset making (even though i've made only 5 or so) Its taken roughly two days to get it to this stage, although I'll spend the rest of the week and maybe next just finishing up some of the accessories in z brush and then work on the diffuse. He's 5,313 triangles, which is relatively in the same boundary as Penguin's 4.7k. My main concern is the cape, well cloth physics in general especially when he has the waist wrap sash too.

Things left to do;
-Horns sculpt
-shoulder strap

Thursday, 7 March 2013

UDK update.

So for the past week I've been changing things around in UDK, trying out new things and implementing additional animations etc...Here's a list of updates

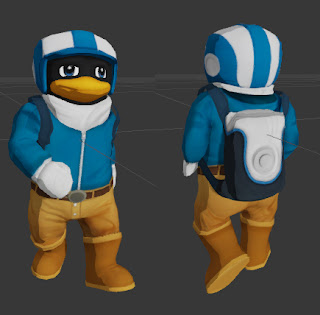

Cel-Shading set-up

I've searched around on the UDN forums and someone provided a very simple way to create a cel-shaded look. I've slightly modified it to change the lighting divisions from 3 to 2 (Wind Waker) and removed the strange material-based edge detection it had previously. I plugged in the diffuse multiplied by 0.3 into the emissive to give it a bit of self-illumination thus making it more flat coloured.

New Animations and Animtree set-up

I've added a few extra animations to incorporate in Penguins movement and for use on the ladder. Here's a screen of the animtree as it is, but further modifications may be needed. (you probably wont be able to see any of the node names)
Ive set up four different speed instances for Penguins movement, beginning with a standard walk which is defaulted to directional controls. Holding Shift will give Penguin a small boost of speed to the walk i.e. fast walk. By default 'Left Shift' is assigned to produce the 'Walk' function and normal directional controls will be a 'jog'. But I chose to swap them. The next key function I added was through kismet, which was by key pressing 'Q' - which would cause a jog. The console command I assigned doubled the Setspeed from 0.2 to 0.4. Because the Animtree allows blending between the animations the fact that Penguin moves faster causes the animation to run off the 'Fast' animation - which is completely controlled by a blendbyspeed node. This node allows you to combine two animations, for example we have a walk and a run. The blend by speed gives you the ability to produce the animation depending on a set speed, so if Penguin is running at  a speed of 0.2, then the 'slow' animation will be registered. But if you change penguins speed to 0.4, the 'fast' animation is registered.
Finally, the last motion speed is the sprint, which requires both the jog and fast walk functions to be simultaneously pressed (Left Shift and Q). If you're wondering, I did base it off Assassins Creed.

Climbing Ladders

I added in the ladder animation. I'm trying to weigh up which is more appropriate to have, basic ladders or try out wall climbing. I've done some research into a good climbing system but the scripts are pretty much withheld by everyone who was successful, and it does seem a little complex for me to even attempt. So I kind of have to stick with ladders for now. Until I can get a good wall scaling motion; up down left and right - its boring ladders for penguin.

Basic Snow material set-up

I remember seeing a you tube video of someone who set up a shader for snow to appear on top of an object, no matter of position or rotation. So I thought it would be cool if I could implement this too, and a quick search through epic games forums pointed me towards a simple material set-up that does, on a more basic level, exactly that. And all I have to do is Lerp the diffuse with a constant snow texture and it should work every time. I tested it out on this pillar (udk's). Works on Penguin too, but its not needed on him.

So far it's looking promising, but I feel the need to continue to push and see what I can produce within my technical limitations. Then I remember my true purpose for this project which is game art, not game programming. I've got the basics set up, material functions are solid so I guess all that's left is to begin world creating. But before I begin, I strongly believe more concepting is required, so there's my next step.

Wednesday, 6 March 2013

Character Unlocked!

an agile, acrobatic staff wielding Rock-hopper. No name still- seriously terrible at naming things.
